Engineering calculations you can stand behind.

Run transparent, standards-referenced checks and export professional PDF reports, across one growing engineering toolkit.

Explore calculators View an example report

Demo

Validated against published standards

Every active check is guarded by a hand-computed benchmark derived from the published clause equations.

Scroll through the real calculator workspaces.

Follow each live workspace from inputs and dimensioned schematics through the governing result and sourced code checks - every demand, capacity, utilisation, and assumption visible. Swipe or use the tabs to preview every calculator.

Open the lifting lug calculator

xarpis.com/calculators/lifting-lug

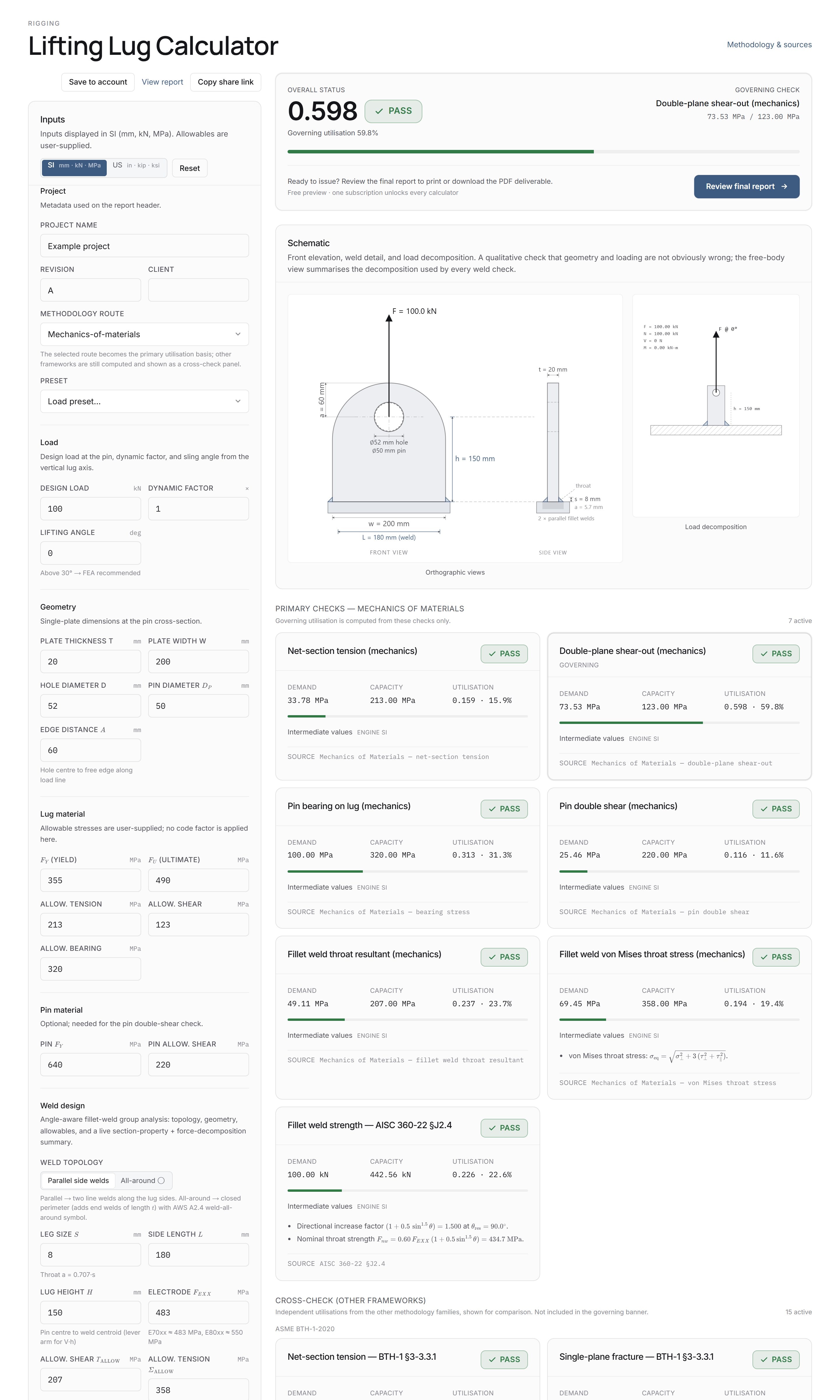

The lifting lug calculator workspace scrolling from engineering inputs and dimensioned schematics through the governing result, mechanics checks, and sourced code cross-checks

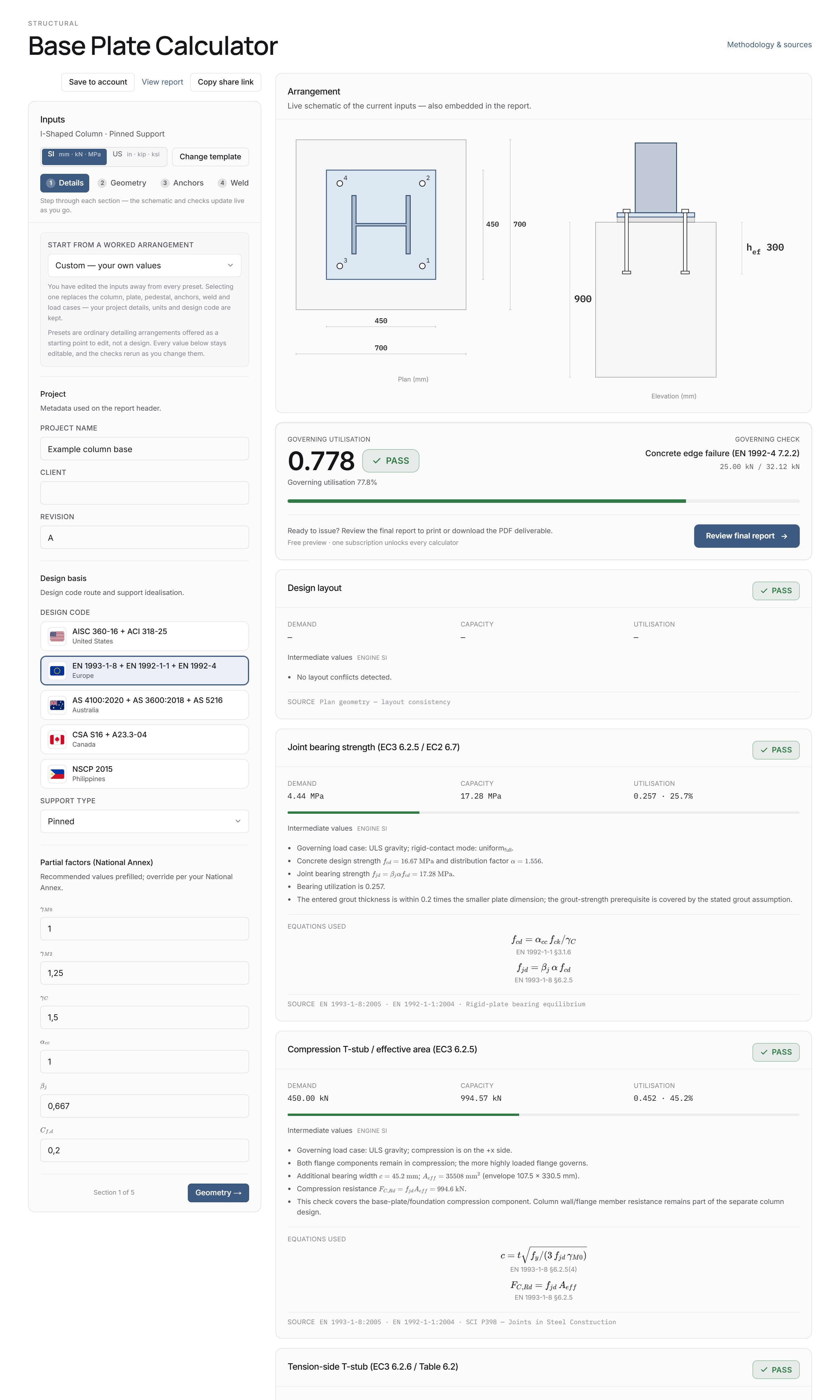

The base plate calculator workspace with design-code selection, a dimensioned plan and elevation arrangement, and Eurocode bearing, T-stub, and anchor checks

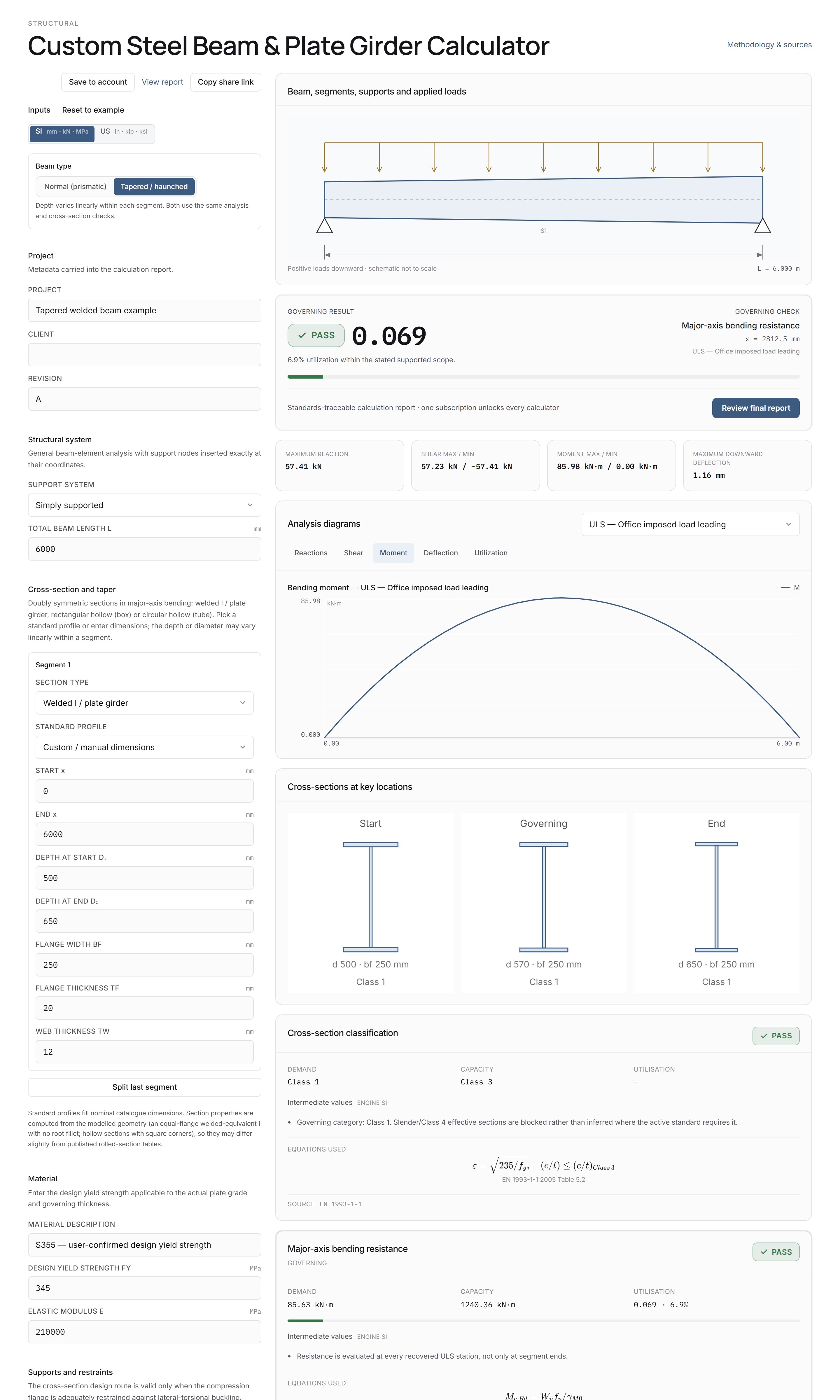

The steel beam calculator workspace with the beam diagram, governing bending resistance, analysis diagrams, and cross-section classification under a selectable design standard

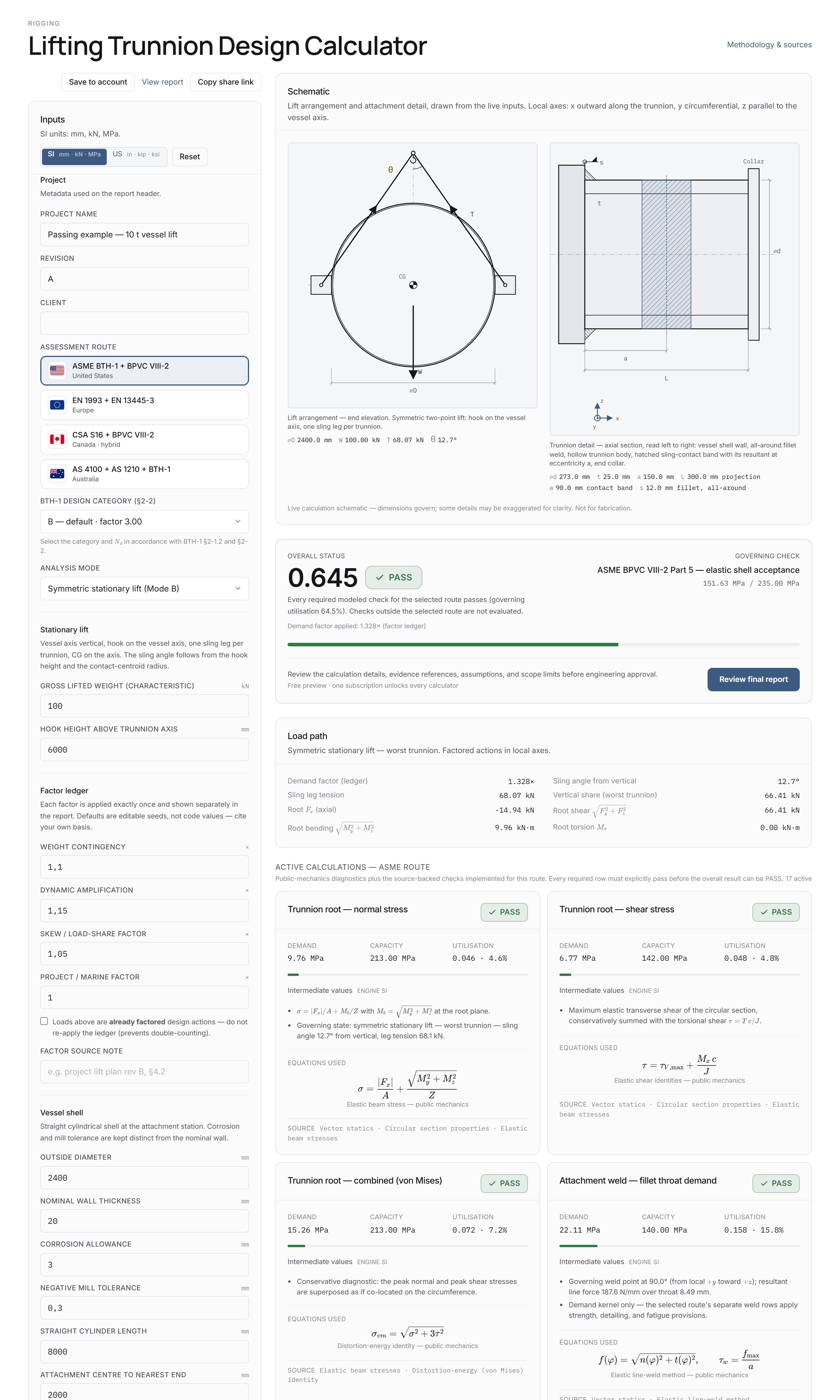

The lifting trunnion calculator workspace with the lift arrangement schematic, factored load path, and the ASME route's member, weld, and shell acceptance checks

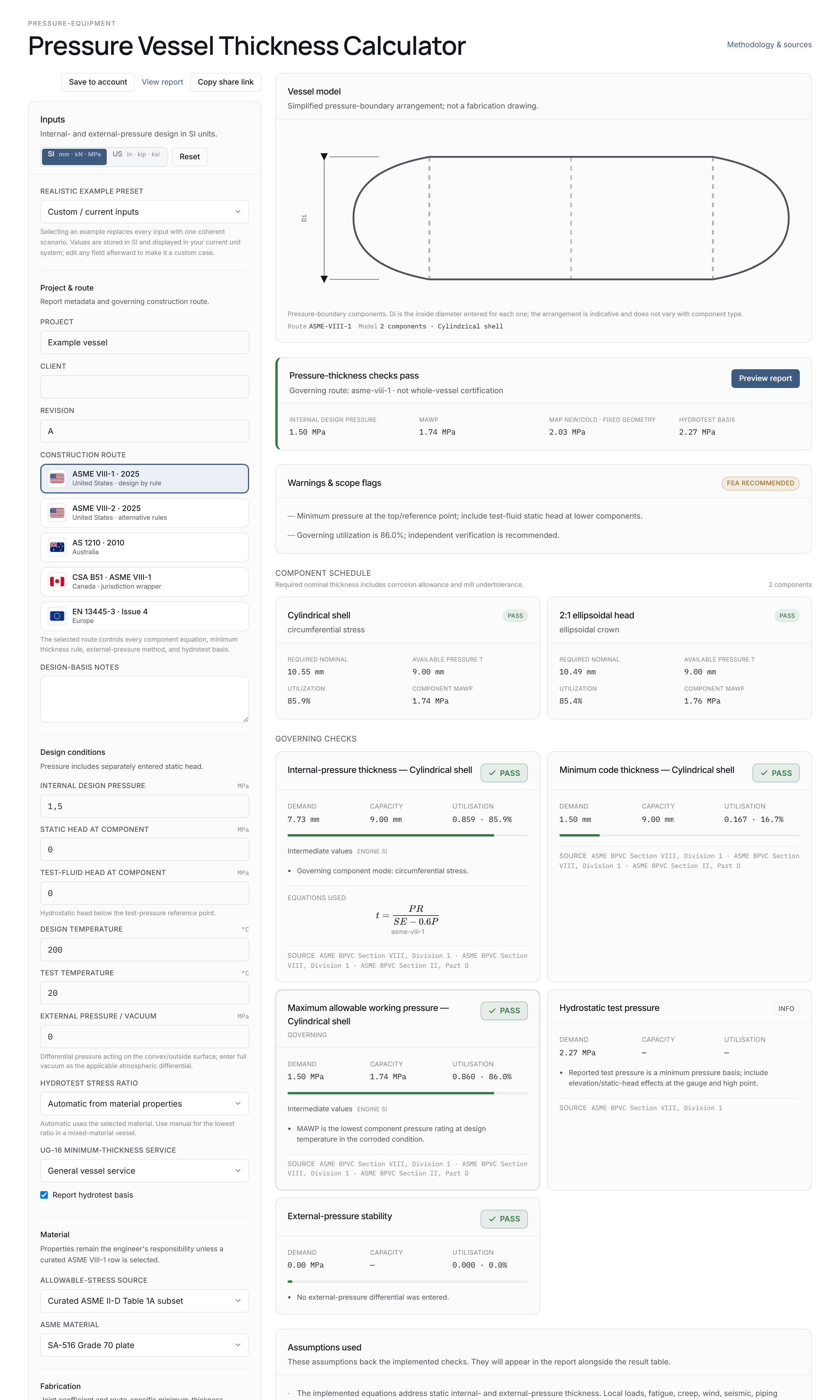

The pressure vessel thickness workspace with the construction-route selector, a pressure-boundary arrangement drawing, the component schedule, and internal-pressure, MAWP, hydrotest and external-pressure checks

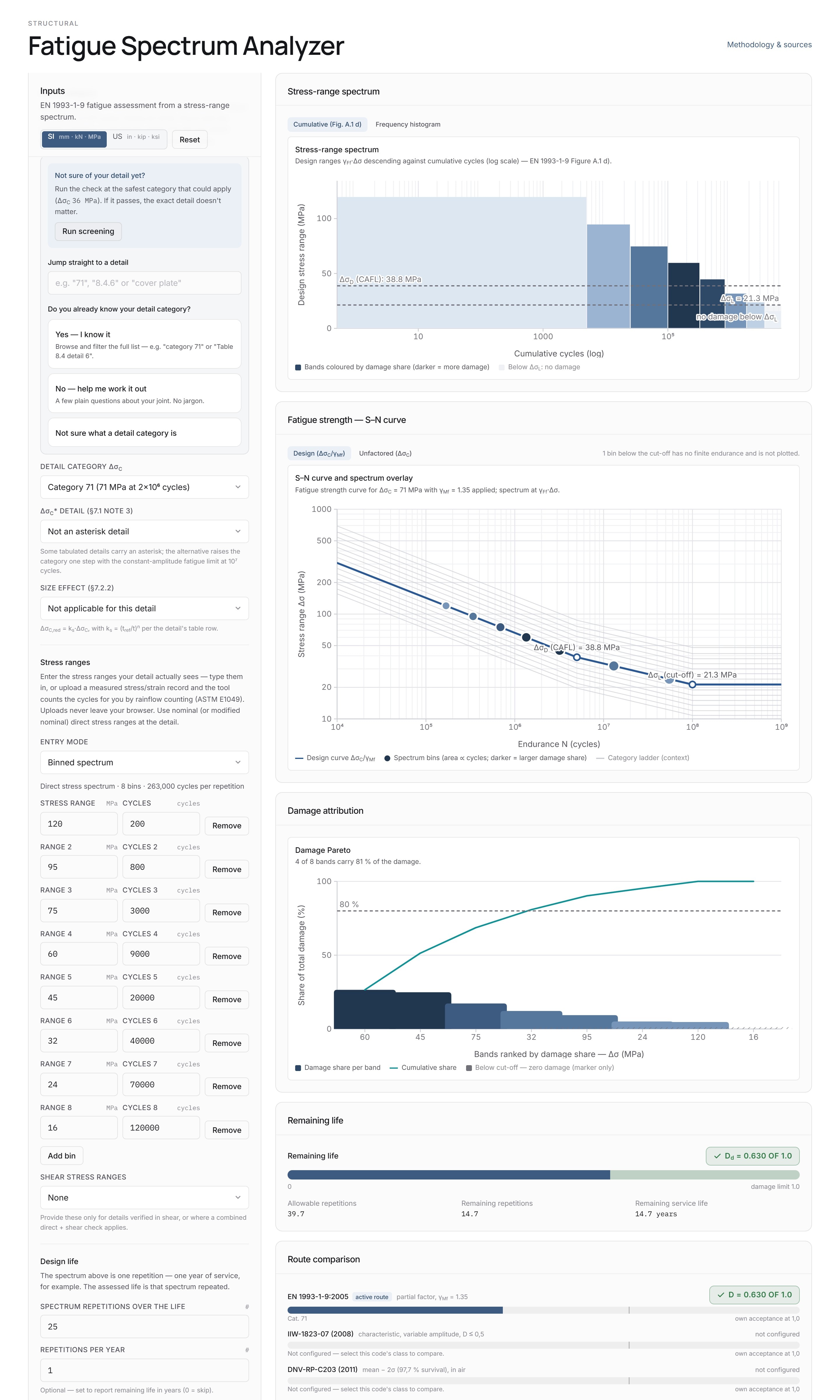

The fatigue spectrum analyzer workspace with the stress-range spectrum chart, the S-N curve overlay, the damage attribution plot, and the remaining-life result

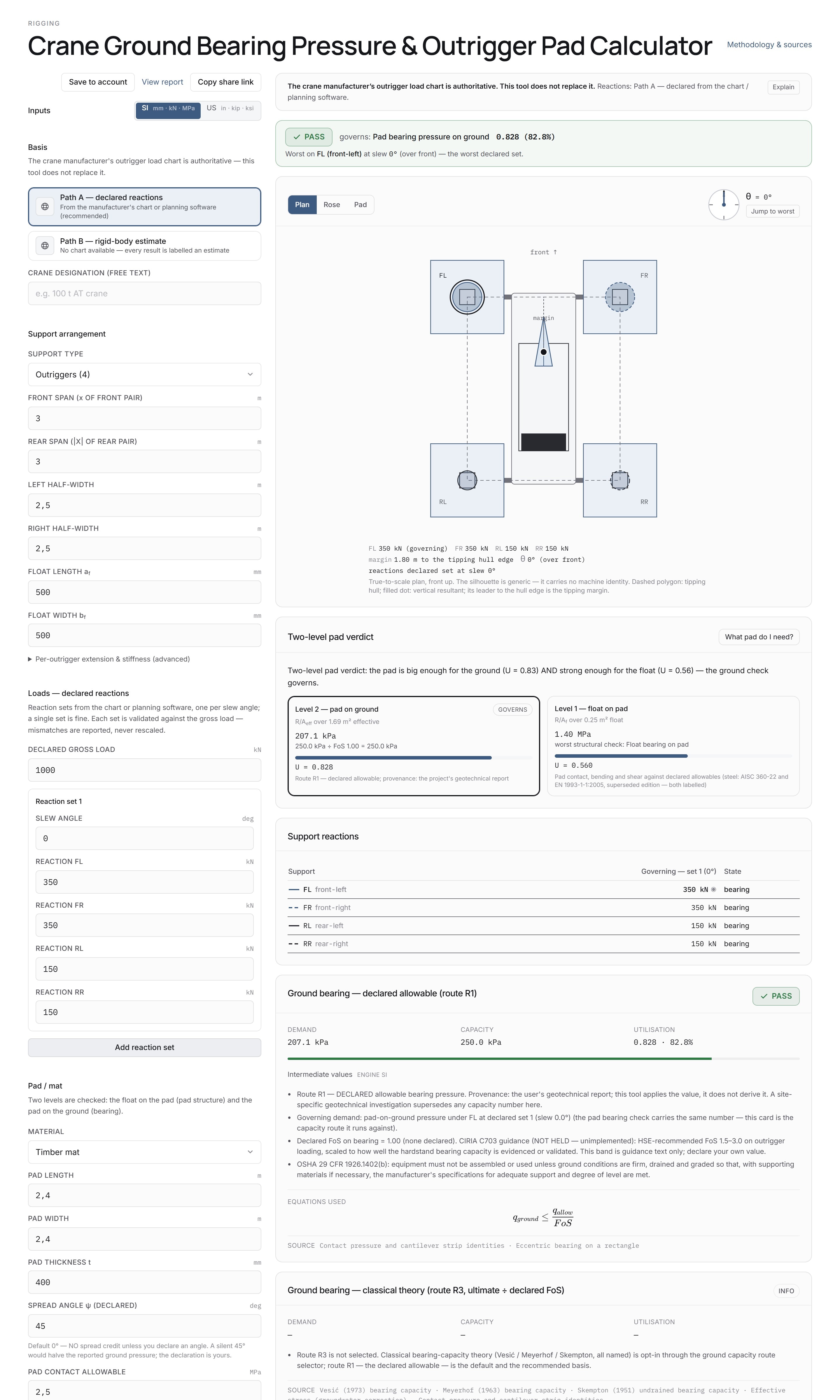

The crane ground bearing workspace with the outrigger plan to scale, the support reaction table, the two-level pad verdict, and the declared-allowable ground check

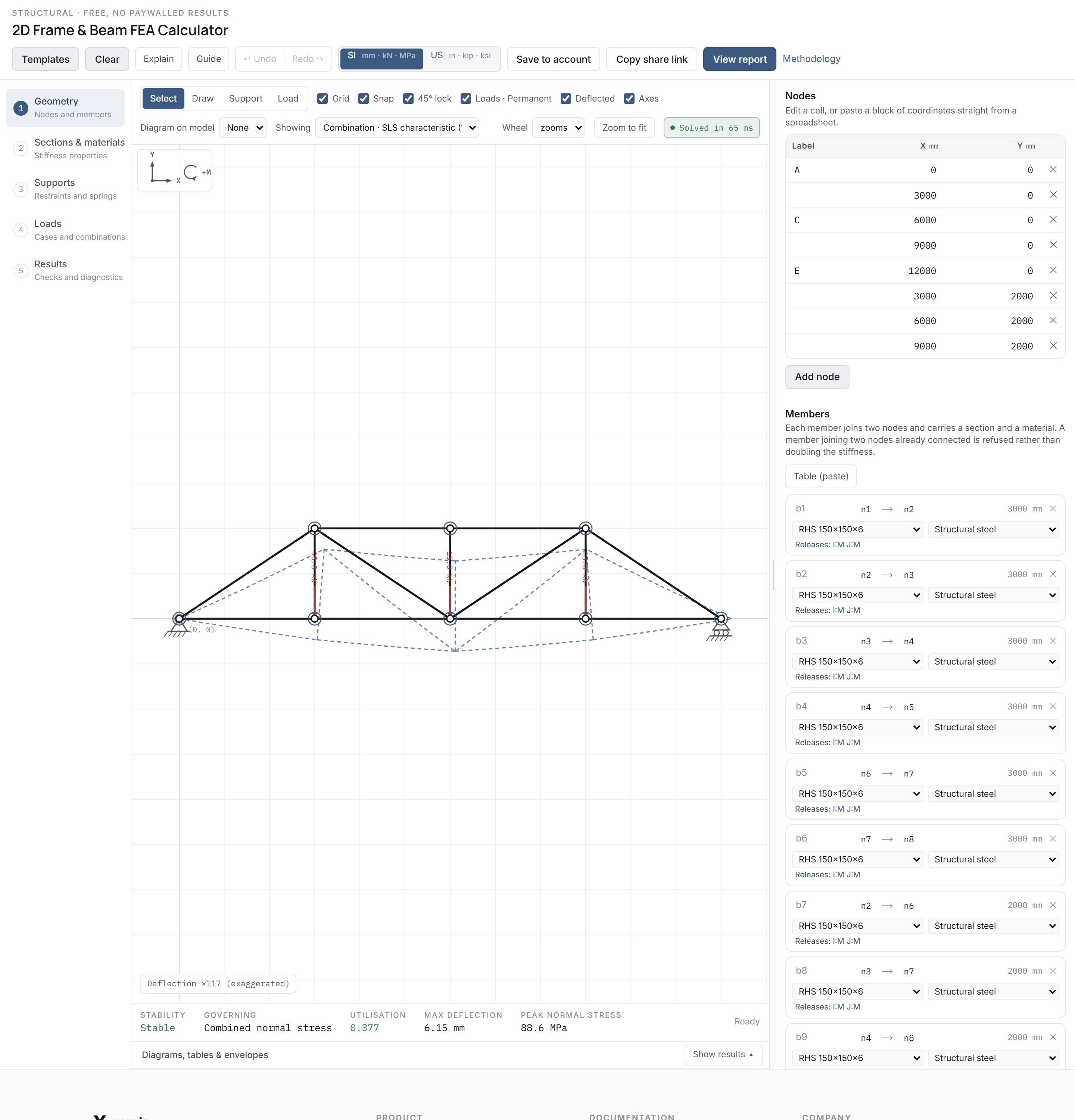

The 2D frame and beam FEA workspace with a truss model on the canvas, its supports and deflected shape, and the node and member tables beside it

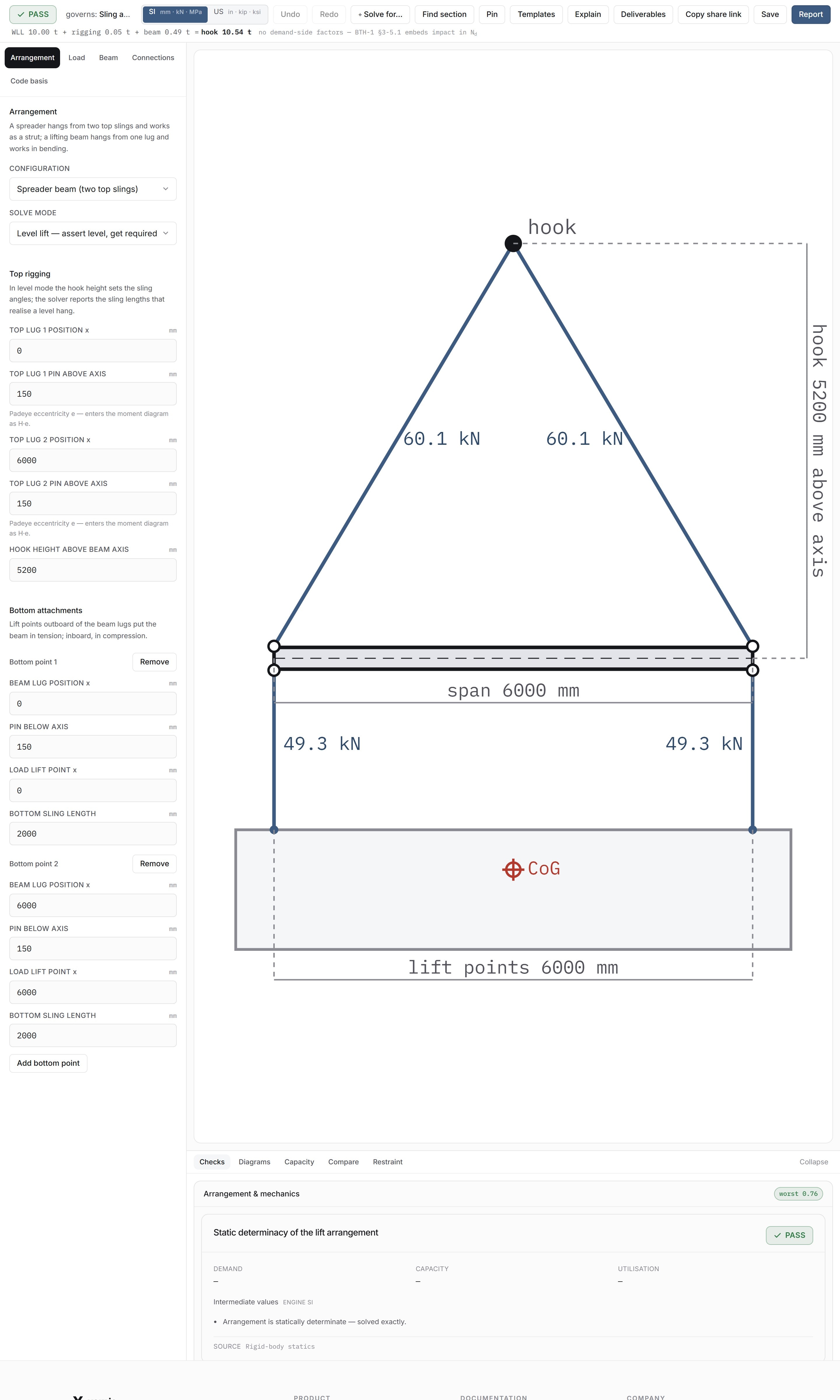

The spreader beam workspace with the rigging arrangement drawn to scale, sling tensions and included angles labelled, the centre of gravity marked, and the arrangement checks below

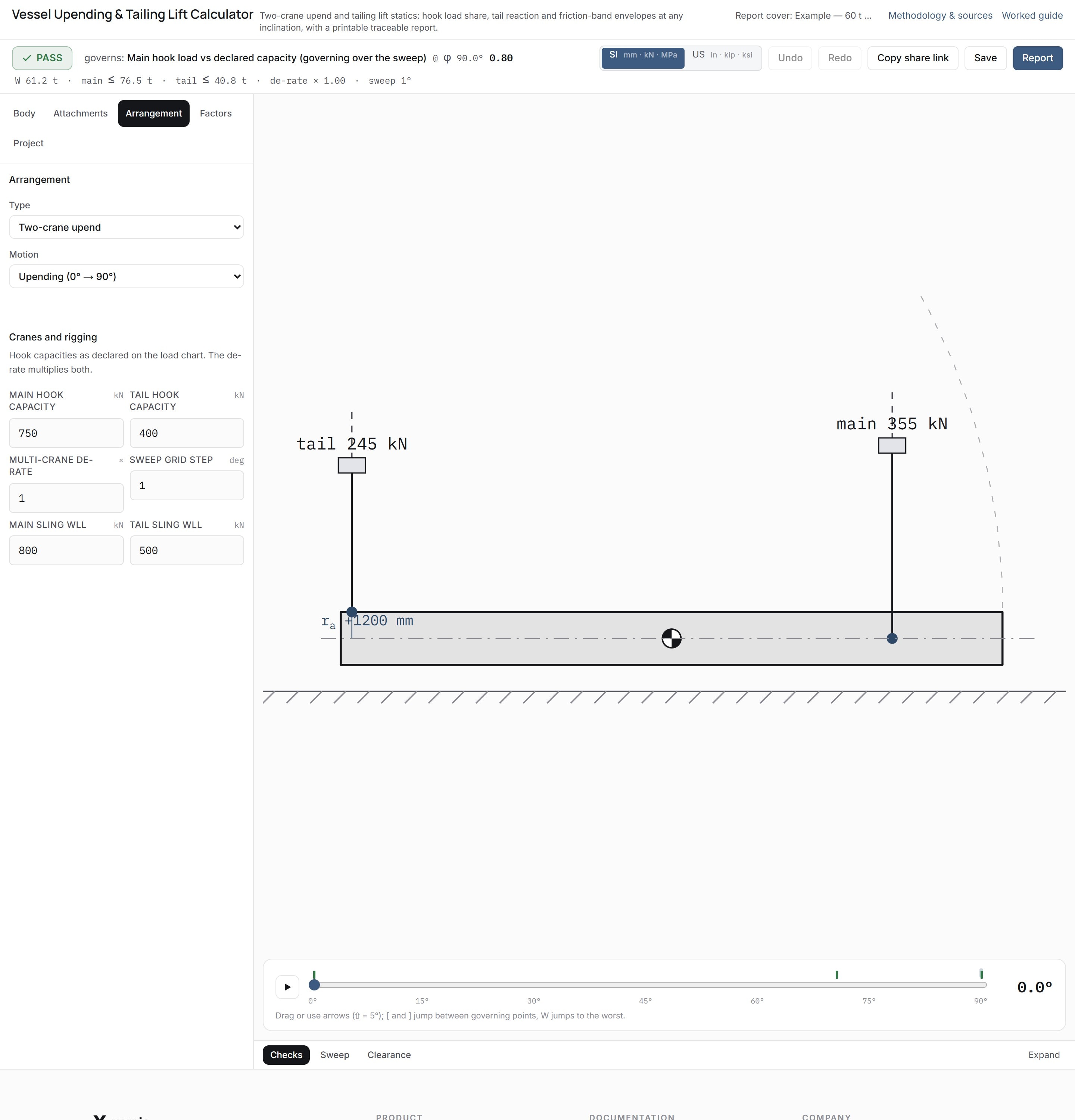

The vessel upending workspace with the upend arrangement at its starting inclination, the main and tail hook loads, and the inclination scrubber that sweeps the lift

Real calculator screenshots. Every tool is free to use; report exports unlock with one subscription.

One growing catalogue of in-depth calculators.

Each one does a whole job end to end, rather than a single formula you would still have to assemble a calculation around.

Browse the catalogue

Steel column base plate

Size a steel column base plate and check bearing, plate bending, anchors and welds.

AISC 360-16 · ACI 318-25 · EN 1993-1-8 · +8 more

Open

Lifting lug & padeye

Check a single-plate lifting lug or padeye for plate, pin and weld at the sling angle.

ASME BTH-1-2020 · EN 1993-1-8 · DNV-ST-N001 · +2 more

Open

Steel beam & plate girder

Analyse a steel beam or plate girder and check section resistance to a selected code.

EN 1993-1-1 · AISC 360-22 · CSA S16-19 · AS 4100:2020

Open

Lifting trunnion

Check a pair of vessel lifting trunnions for member, weld and local shell stress.

ASME BTH-1-2020 · WRC 537 · EN 1993-1-1 · +7 more

Open

Pressure vessel thickness

Size or rate shells, heads and cones for internal pressure, vacuum, MAWP and hydrotest.

ASME VIII-1 · ASME VIII-2 · EN 13445-3 · +3 more

Open

Fatigue spectrum analyzer

Assess a welded or plain detail for fatigue from a stress history or a stress spectrum.

EN 1993-1-9 · AISC 360-22 · DNV-RP-C203 · +2 more

Open

2D frame & beam FEA

Draw a plane frame, beam or truss and read its reactions, diagrams and envelopes.

Mechanics of materials · Direct stiffness method · No code resistance applied

Open

Spreader & lifting beam

Size a spreader or lifting beam and check its padeyes, welds and sling angles.

ASME BTH-1-2020 · EN 13155:2020 · DNV-ST-N001 · +3 more

Open

Crane ground bearing

Find the ground pressure under a crane's outriggers or tracks and size the pads.

EN 1997-1 · AISC 360-22 · EN 1995-1-1 · +2 more

Open

Vessel upending

Track hook loads, tail reaction and attachment vectors through an upend or tailing lift.

ASME VIII-1 UG-23 · DNV-ST-N001 · EN 13001-2 · +4 more

Open

Follow one number all the way down.

Every computed check carries its own derivation and the clause it came from. This is one of them, taken straight from the free lifting-lug example, with nothing rounded for the page.

Fillet weld strength

AISC 360-22 §J2.4, Eq. J2-5

Utilisation

0.226

✓ PASS

What you entered

Design load: $F = 100.0 kN$
Fillet leg: $s = 8 mm$
Weld runs: $n \times L = 2 \times 180 mm$
Electrode: $F_{E X X} = 483 MPa$
Resultant angle: $θ = 90. 0^{\circ}$

The leg

s

is what the fabricator is given. The throat

a

is what the strength is computed on.

How the capacity is reached

01
Design throat
$a = 0.7071 s = 0.7071 \times 8$
5.657 mm
02
Throat area
$A_{w} = n L a = 2 \times 180 \times 5.657$
2036 mm²
03
Directional increase
$k = 1 + 0.5 sin^{1.5} θ = 1 + 0.5 sin^{1.5} 9 0^{\circ}$
1.500
04
Nominal throat strength
$F_{n w} = 0.60 F_{E X X} k = 0.60 \times 483 \times 1.500$
434.7 MPa
05
Nominal strength
$R_{n} = F_{n w} A_{w} = 434.7 \times 2036$
885.1 kN
06
Allowable, ASD
$R_{n} /Ω = 885.1/2.00$
442.6 kN

U = \frac{F}{R _{n} /Ω} = \frac{100.0}{442.6}

0.226

demand 100.0 kN · allowable 442.6 kN · Ω = 2.00 per §B3.2

Printed in the report as Fillet weld strength - AISC 360-22 §J2.4

See it in the example report

A report another engineer can actually review.

Every export carries the complete check trail: inputs, per-check demand and capacity, the governing result, source references, assumptions, warnings, and revision metadata. Nothing is reduced to an unexplained number.

Source traceability on every check
Assumptions and scope stated in full
Governing check and overall utilisation
Project, revision, and engine-version metadata

View an example report

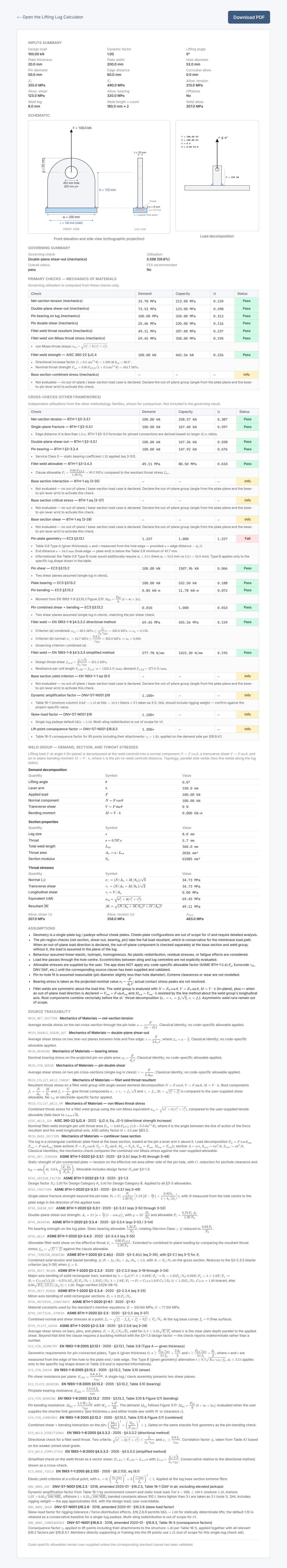

A Xarpis calculation report for a lifting lug, scrolling from the design basis through every check, its sources and assumptions. — The actual export, top to bottom. Open it full size

Spend less time rebuilding calculations. Keep the engineering visible.

Every calculator is free to use, with a watermarked report preview. One subscription unlocks full reports across the whole toolkit, including tools added later.

$49 / month · or $490 / year · cancel any time

Explore calculators See what is included
